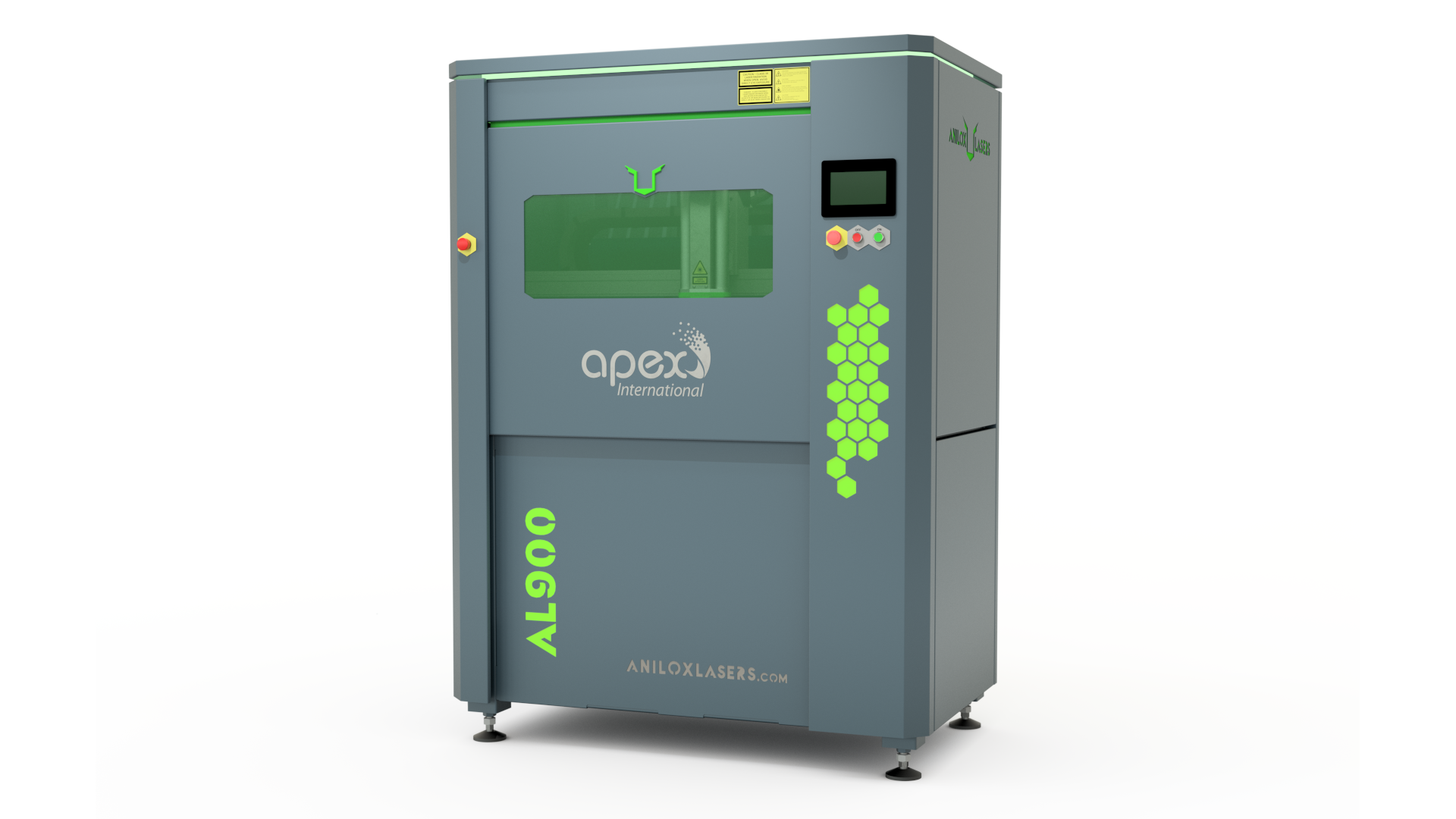

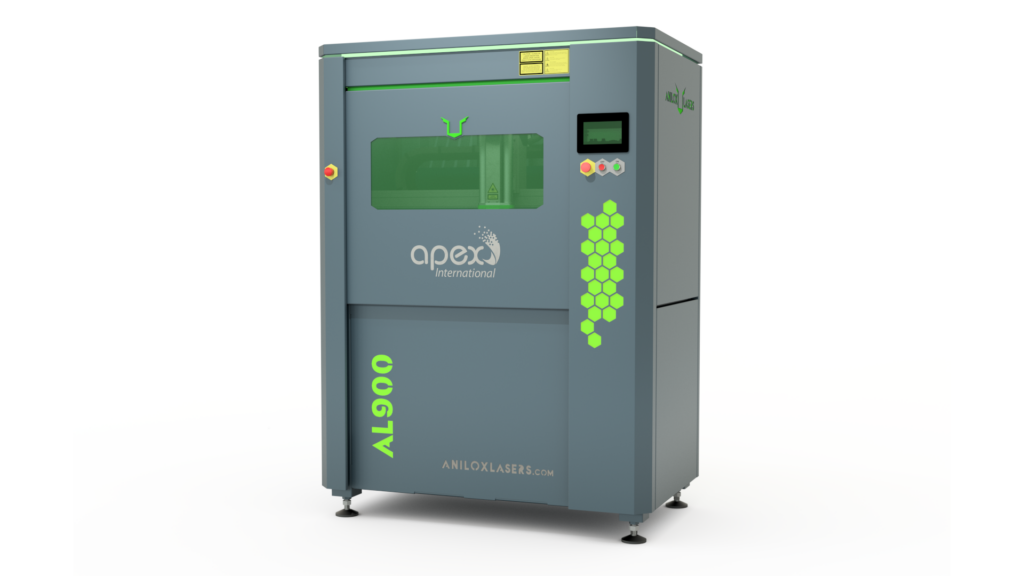

AL900 Anilox Laser

The label size Anilox Laser AL900 offers precise and safe cleaning for small Anilox rollers. It ensures optimal performance and longevity with advanced laser technology.

Description

The Anilox Laser AL900 is a state-of-the-art cleaning system specifically designed to deliver unmatched precision and care for Anilox sleeves and rolls for flexographic label presses. Equipped with advanced laser technology, the AL900 removes ink, coatings, and residues without the need for abrasive contact or harsh chemicals, ensuring a damage-free and eco-friendly cleaning process. This innovative system is engineered to restore the full cell volume of Anilox surfaces, enhancing print quality and consistency while extending the lifespan of your equipment.



The AL900’s automated cleaning processes, combined with a user-friendly interface, allow operators to achieve efficient and repeatable results with minimal effort. Prioritizing reproducibility, it is ideal for the label printing industry, where consistent print quality and accuracy are crucial for maintaining high production standards. With customizable cleaning programs and precision controls, the AL900 adapts to the specific needs of each Anilox roll or sleeve, ensuring optimal performance across various printing applications.



We do not clamp your valuable rollers in metal chucks.  We have designed a unique quick release system that clamps and rotates the rollers in its own bearings. Thus preventing damage to your rollers studs and making sure an easy roller change is made. For various rollers adapters are available or can be custom made.

Specifications

  • Housing 1480 x 1173 x 2024 mm (WxDxH)
  • Weight approx. 550 kg
  • Workfield Anilox diameters: min Ø60 x 600 mm, max Ø150x 900 mm (other sizes on request)
  • Laserheid Lion automatic optical follow focus head
  • Laser source XIR-MOPA laser (Master Oscillated, Power Amplified)
  • Pulse length Optimized for efficient cleaning
  • Pulse power Restricted below the damage threshold of ceramic anilox materials
  • Pulse frequency Automatic pulse frequency adjustment

Media library

Dimensions Anilox Laser AL1100
